Hobby Projects

I am an avid MAKER. I have had the privilege to build several robotic and home automation systems in my personal time over the years. My journey started in middle school when I started building simple analog BEAM robots to now where I have multiple challenging systems projects.

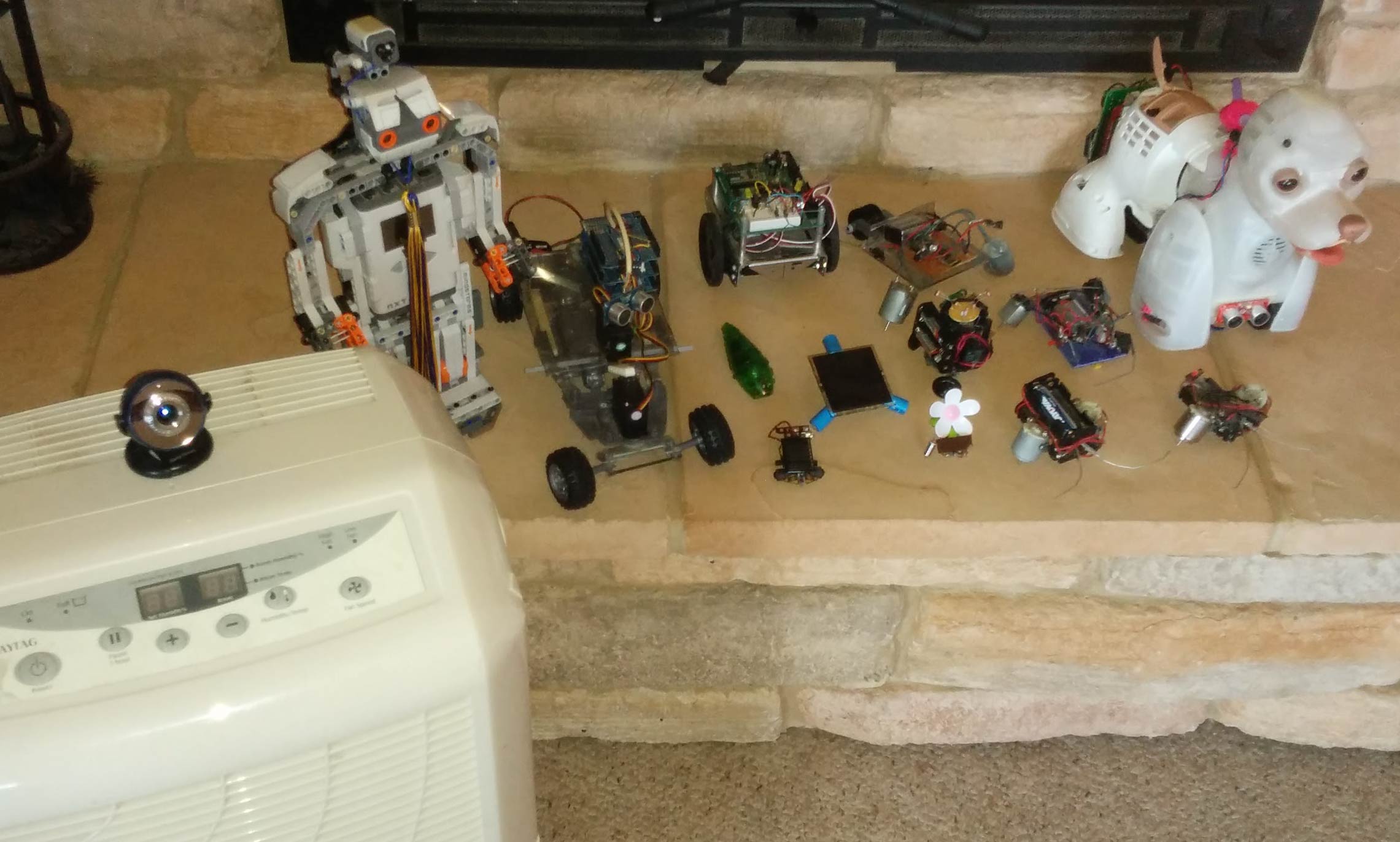

My first robots were small BEAM (analog controlled) systems. The circuits were a rats nest of wires and discrete components. The mechanical systems held together with hot glue. I hesitantly graduated to microcontroller robots. After overcoming the initial overwhelming fear of programming (in BASIC no less), I found that I really enjoyed the craft. With the various small robots I built in my formative years (plus competing in FIRST robotics on FRC Team 930) I gained fundamental electronic and programming skills that serve me to this day.

When I went to graduate school my work, study, and hobby mixed. I focused my efforts on understanding collaborative robotics. Two distinctively hobby projects come to mind: a robot motion “playground” and an abstract trajectory visualization.

First, the robot motion playground was inspired by my need to control the Universal Robots UR3e cobot arm for my research. I wanted to learn how to use the new ROS driver with my colleagues’ real-time motion controllers (Relaxed-IK and Lively-TK). The goal was to serve as a reference project in the lab. To that end I built the ur3e_real_time_motion_playground.

The second project builds off the playground with a retro-fitted 2D web fluid visualization tool to express robot end-effector position and orientation. I mostly built it on a whim over a weekend to relax. It doesn’t have any immediate academic or industry use though it is rather enjoyable to watch when a robot operates over a motion trajectory.

This brings us up to now, I have two robot projects in active progress (plus maintenance of existing projects). First is a mobile robot called YAM. The second is a robotic finger named Taltosoid.

My goal with YAM is to continue improving my understanding of robotic subsystems. The base platform consists of a simple differential drivetrain augmented with three ultrasonic sensors, two infrared sensors all hooked up to an Arduino. The Arduino monitors sensors, commands the motor controller, and communicates with higher-level ROS control. The ROS subsystem uses a Nvidia Jetson Nano as controller connected to both an Intel RealSense Depth Camera and Tracking Camera. The tracking camera provides decent odometry data for SLAM (which is where I currently am at with the project). Next steps (1) is to rework the battery charge to have a home base with automatic recharge; (2) upgrade the computer as Jetson Nano is underpowered; and (3) transition to ROS2.

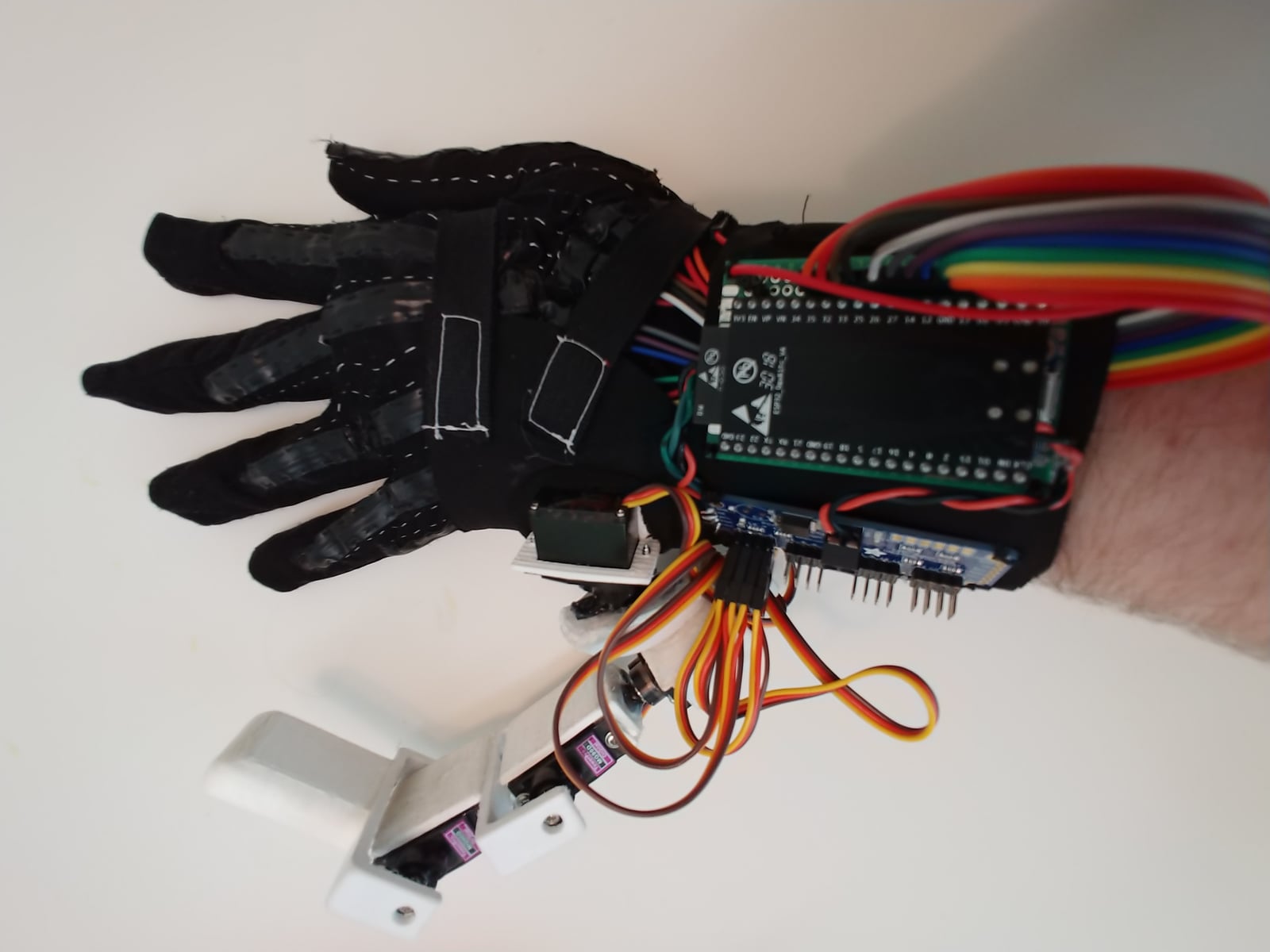

I am also interested in augmenting humans with symbiotic, supernumerary robotic limbs. I have built a robotic finger called Taltosoid (a play on the Hungarian word Taltos) to start exploring control modalities and use cases of wearing an extra digit. My long-term vision for this system is a functional robotic finger that provides dynamic grasp support for arbitrary objects. I am approaching this space as a human-robot interaction, shared-control problem instead of as a direct control problem (commonly found in the literature).

In addition to robotics, I also dabble in home automation since my undergraduate degree (when I actually had a place of my own). Most of my systems are commercial-off-the-shelf smart switches, bulbs, cameras, etc. communicating with Amazon Alexa and Google Home. though I am actively building my own server to integrate various DIY embedded smart devices with Amazon / Google (see my other project Okos Polip).

I have built (and/or actively building) the following devices with integration into Okos Polip:

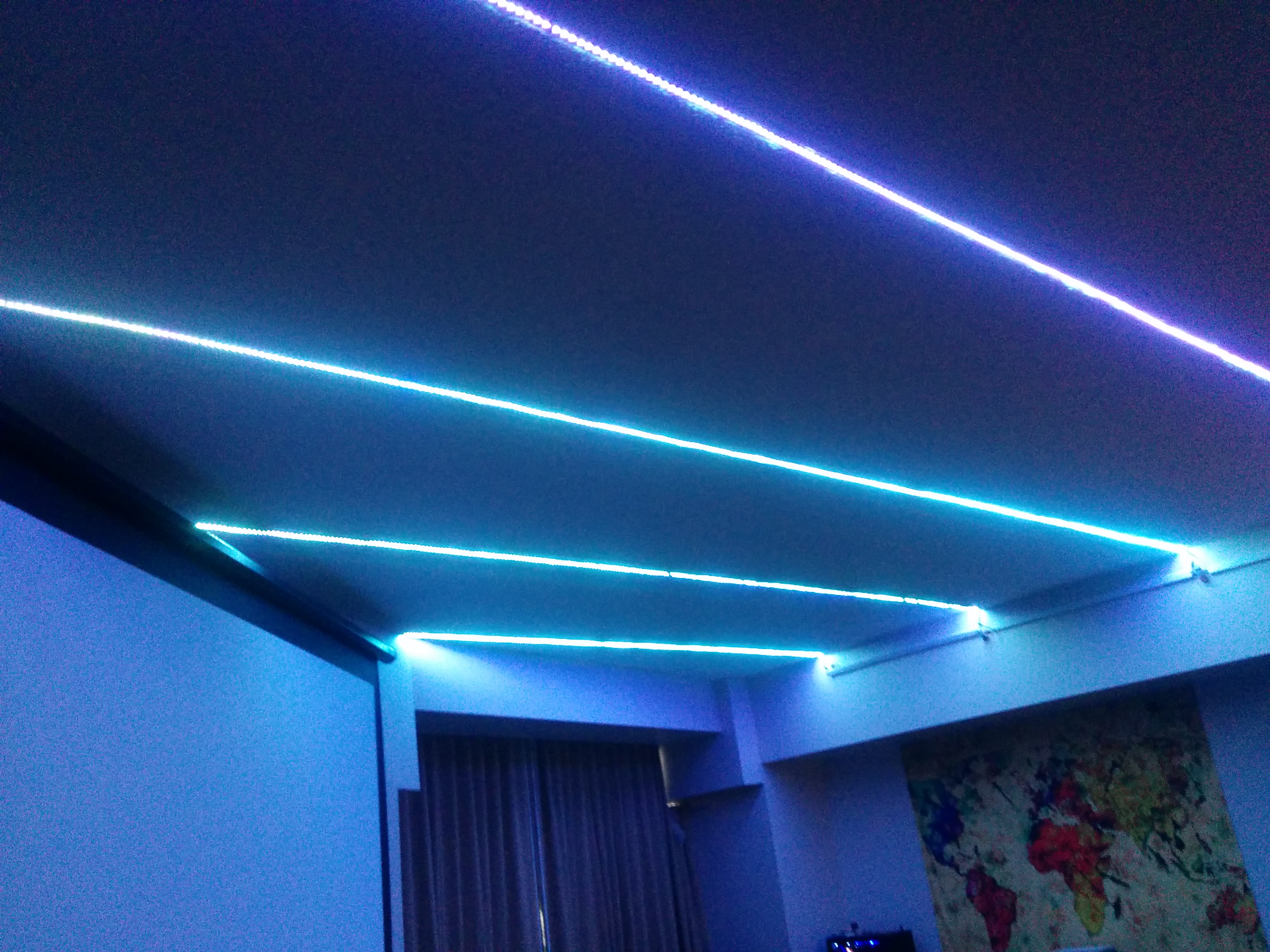

Previously, I built a RESTful LED light strip service that ran on an ESP8266 (translating REST commands into IR blasts). I also did some LED automation effects for lighting in my apartment (communicating with the predecessor to Okos Polip).

Feel free to check out my Github for the various projects discussed above.
